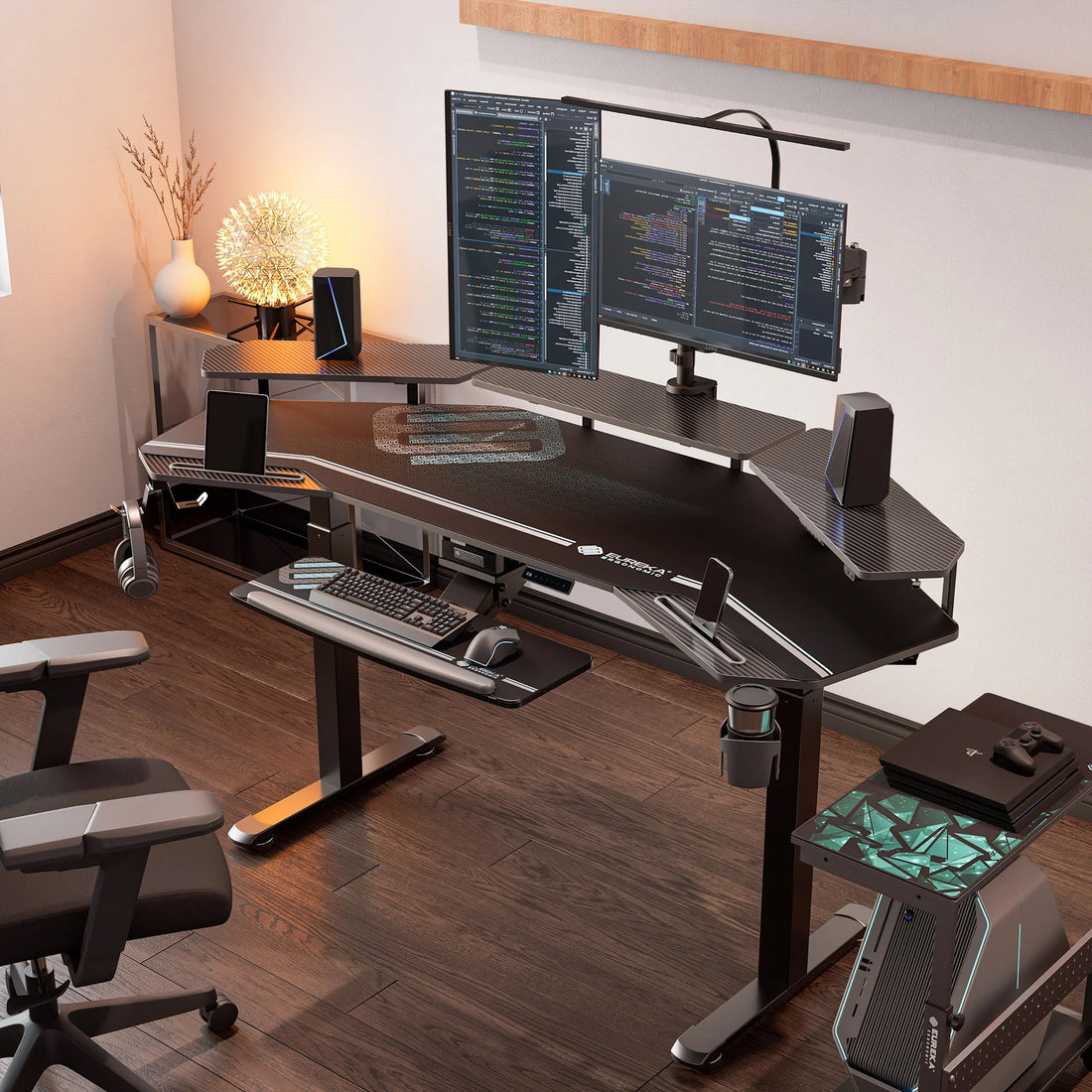

Choosing a Desk for Heavy Monitor Setups

For many creators, the first serious workstation upgrade is not a new camera or GPU but a heavier monitor rig—two or three 32" panels, a 49" ultrawide, stacked displays, or color‑critical reference screens. That is also the point when a generic desk stops feeling safe.

This guide explains how to choose a desk for heavy monitor setups, with a specific focus on desktop materials. The goal is simple: protect your equipment, maintain a stable image, and support healthy sit–stand ergonomics over years of use.

According to the U.S. National Institute for Occupational Safety and Health (NIOSH), poorly designed workstations contribute to work‑related musculoskeletal disorders (MSDs) through awkward posture, static load, and repetitive strain. For users who spend long hours at multi‑monitor rigs, the desk itself becomes a critical ergonomic component, not just a piece of furniture.

1. What “Heavy Monitor Setup” Really Means

A “heavy” setup is not just about the total weight of your screens. It is the combination of:

• Panel weight (e.g., large 4K or ultrawide displays)
• Monitor arms and VESA plates
• Speakers, interfaces, cameras, lights
• Desktop PCs on risers, UPS units, or external drives

Static vs dynamic load

Installers distinguish between:

• Static load – the total weight sitting on the desk when nothing moves.
• Dynamic load – what the frame and top experience when a sit–stand base lifts, stops, and starts, or when the desk is bumped.

Practical experience shows that when a desk moves, inertia can make the effective load feel significantly higher than the static number, especially with tall dual‑arm mounts extended away from the frame.

Why a safety margin is non‑negotiable

Experienced ergonomists and installers consistently recommend summing the weight of all monitors, arms, stands, and accessories, then choosing a desk whose rated static capacity is at least 25–30% higher. This safety margin protects against:

• Long‑term creep (slow sagging of panels, especially MDF/particleboard)
• Extra force during sit–stand movement
• Future upgrade headroom (e.g., adding a heavier display or speakers)

For example, if your equipment totals 60 kg (about 132 lb), targeting a desk rated around 75–80 kg (165–175 lb) provides a pragmatic buffer.

2. How Desktop Materials Behave Under Heavy Loads

Desktop material choice directly affects stiffness, long‑term durability, and how safe your heavy rig feels when you lean in or adjust a monitor arm.

The structural basics

Most desk tops behave like beams spanning between frame cross‑members. The key factors are:

• Material stiffness (modulus of elasticity)
• Panel thickness
• Support spacing (distance between frame rails or legs)
• Load distribution (single arm vs spread‑out feet)

Industry practice often uses deflection limits like L/240–L/360 for wood‑based panels spanning around 120 cm between supports. That corresponds to roughly 3–5 mm of acceptable deflection under service loads, as summarized in structural design guidance from the American Wood Council. Exceeding those deflections for years noticeably raises the risk of permanent sag.

Research Insight (Expert Warning)

Expert Warning – Local sag is worse than the spec sheet suggests. One of the most important practical observations from lab and field testing is that conventional beam formulas under‑predict sag when loads are concentrated.

Research insight IG2 shows that a single off‑center monitor arm can generate 2–4× higher local bending and sag than the same weight spread across the top. This happens because the arm both concentrates the force and adds leverage. As a result, a desktop that looks fine in “distributed load” testing can dimple or bow around a grommet or clamp.

When evaluating materials, assume that any heavy arm mounted near the back edge sees a much harsher environment than the nominal weight rating implies.

3. Comparing Common Desktop Materials for Heavy Monitor Rigs

The table below focuses on structural behavior, durability, and ergonomics for multi‑monitor setups.

3.1 High‑pressure laminate (HPL) over particleboard or MDF

This is the most common sit–stand desktop construction: a wood‑based core (particleboard or MDF) with a plastic laminate skin.

• Pros
  • Cost‑effective, widely available
  • Smooth, durable surface; scratch and stain resistant
  • Easy to clean; good for mixed work and gaming setups
• Cons
  • Core is vulnerable to moisture, especially at edges
  • Susceptible to creep and permanent sag under sustained heavy loads
  • Poor screw‑holding strength at edges if over‑tightened

Performance analysis in heavy‑load deployments shows that a typical 25 mm MDF + HPL panel spanning 120–140 cm between supports performs acceptably for single or dual 27" monitors on stands, but visible sag often appears when users mount dual heavy arms with 32"+ panels unless the frame includes a deep steel cross‑beam.

3.2 Solid wood and thick veneer tops

Solid hardwood or thick veneer‑over‑laminated wood panels feel robust and warm to the touch.

• Pros
  • Higher screw‑holding strength than particleboard
  • Easier to repair (sanding and refinishing)
  • Aesthetically pleasing for studio or office environments
• Cons
  • Can warp or cup with humidity changes
  • Weight increases quickly with thickness, demanding stronger frames and motors
  • Quality varies widely by species and construction

Real‑world installations show that 30–35 mm laminated wood tops with good underside bracing handle heavy monitor rigs well, but the added mass requires sit–stand bases with higher‑torque dual motors and robust lifting columns to maintain speed and reliability.

3.3 Sintered stone, glass, and composite “hard tops”

Stone‑like composite panels and tempered glass are increasingly used for premium desks.

• Pros
  • Very high surface hardness and scratch resistance
  • Excellent stiffness when bonded to a steel subframe
  • A clean, modern aesthetic that pairs well with minimalist setups
• Cons
  • Brittle if improperly supported or drilled
  • Heavier than wood‑based tops
  • Requires careful mounting for monitor arms; direct drilling on site is not recommended

Research insight IG3 highlights an important trade‑off: thicker panels do not only reduce sag; they demand heavier frames and higher‑torque actuators. A thinner sintered stone or glass skin bonded to a reinforced steel frame often outperforms a very thick MDF slab in stiffness‐to‑weight ratio.

3.4 Engineered “sandwich” tops with steel reinforcement

Some high‑performance sit–stand desks use relatively thin decorative surfaces (laminate, carbon‑texture, or veneer) bonded to steel frames or internal ribs.

• Pros
  • High stiffness without excessive weight
  • Better control of sag over wide spans
  • Good platform for clamped monitor arms, especially near structural beams
• Cons
  • More complex manufacturing; quality of bonding is critical
  • Harder to modify (drilling additional holes is risky)

This approach aligns with the principle in research insight IG1: real stiffness is often driven more by edge supports and fastener layout than by the nominal flexural modulus of the surface sheet. A well‑designed steel subframe can double or triple real‑world stiffness compared with a plain panel of the same material.

3.5 Carbon‑fiber style and textured tops

Many “carbon fiber” desks actually use a textured laminate over MDF, while true composite carbon fiber skins over foam or honeycomb cores are rare in desks.

• Pros
  • Textured surface helps with mouse tracking and scratch resistance
  • Visual appeal for gaming and content‑creation studios
• Cons
  • When built on standard MDF, structural performance is similar to other laminate tops
  • True carbon composite panels need careful engineering to avoid edge damage and delamination

Common Misconception: “Carbon fiber finish means the desk is ultra‑strong.” In practice, unless the core and subframe are engineered for stiffness, the appearance of carbon fiber has little to do with load capacity. A well‑braced standard laminate top often outperforms a “carbon‑look” panel mounted on a light frame.

Material comparison snapshot

Material type	Stiffness for heavy arms	Long‑term sag resistance	Edge durability for clamps	Weight impact on sit–stand base	Typical use case for heavy rigs
HPL on MDF/particleboard	Moderate	Moderate	Fair	Moderate	Dual 27–32" on arms with cross‑beam support
Solid/laminated wood (30–35 mm)	Good	Good	Good	High	Triple monitors, creator rigs on robust frames
Sintered stone/glass + steel frame	Very good	Very good	Good (with proper brackets)	High	Wide ultrawides, color‑critical displays
Steel‑reinforced “sandwich” tops	Very good	Very good	Very good near beams	Moderate	Multi‑arm, multi‑monitor pro setups
Carbon‑texture laminate on MDF	Moderate	Moderate	Fair	Moderate	Mixed gaming/office rigs with moderate loads

4. Frame, Bracing, and Standards: The Hidden Half of Stability

Choosing the right material is only half of the equation. The underside frame and compliance with ergonomics and safety standards determine how well that material actually performs.

Why bracing and beam depth matter more than thickness

Research insight IG3 notes that simply “beefing up” panel thickness increases weight faster than it improves real‑world stiffness, especially on sit–stand bases. Installers regularly observe that:

• A thinner top with a deep steel cross‑beam often feels more solid than a thick un‑braced panel.
• Lateral bracing (across the width) significantly reduces wobble in tall monitor setups.

From a design perspective, the most efficient route for heavy rigs is usually:

1. Choose a moderately thick top (e.g., 25–30 mm wood‑based or composite).
2. Ensure the base includes substantial steel beams under the rear and center.
3. Confirm the leg spacing and rail design support your monitor arm placement zones.

Ergonomic and dimensional standards

Several standards guide how desks should fit the human body rather than just hardware:

• BIFMA G1‑2013 provides ergonomic dimension ranges intended to accommodate roughly the 5th to 95th percentile of the adult population. For height‑adjustable desks, this means the minimum and maximum height should capture most users without footrests or extreme arm angles.
• ISO 9241‑5:2024 defines workstation layout and postural requirements for display work. It emphasizes neutral joint angles and adequate legroom, which are crucial when adding large monitor arms and cable trays.

When selecting a sit–stand desk for heavy monitors, verify that the height range of the base overlaps these ergonomic guidelines so you are not forced into awkward posture just to clear the underside frame or monitor arm.

According to the OSHA eTool on desks, users should be able to place forearms roughly parallel to the floor with shoulders relaxed. If a desk cannot reach that range for your body size once the top is installed, even the stiffest desktop will not deliver a healthy workstation.

Safety and durability testing

For electric height‑adjustable desks, safety standards such as UL 962 focus on mechanical, electrical, and fire‑safety aspects. While they do not directly define monitor weight limits, products assessed to this type of standard undergo tests that:

• Exercise lifting columns and motors under load
• Check stability during height changes
• Assess electrical safety and insulation

When combined with structural standards like the BIFMA X5 series for desks and tables, this provides a more complete picture of long‑term reliability, which is critical when regularly moving a heavy monitor rig.

5. Monitor Arms, Mounting Points, and Torque

Even a strong desktop can be compromised by poor arm placement or hardware choice.

Clamp zones and reinforcement plates

Field experience shows that mounting monitor arms near the desk’s structural beam dramatically improves performance. When clamps sit directly over a steel rail, bending is shared between the rail and the top.

A few practical guidelines:

• Place heavy arms in the rear third of the desk, centered over or close to cross‑beams.
• Avoid clamping right at unsupported corners or far from frame rails.
• For laminate and MDF tops, consider reinforcement plates to spread clamp pressure and reduce the risk of local crushing.

Research insight IG5 adds that even small grommet or VESA holes near the load path can reduce local stiffness and create stress risers. With very heavy arms, that can lead to subtle dimpling or cracking of the surface over time.

L‑shaped desks and shifted center of mass

L‑shaped layouts are popular with streamers and editors because they separate “live” and “editing” zones. However, they also shift the workstation’s center of mass.

Experienced installers observe the following best practices:

• Place the heaviest monitor cluster near the corner junction, where both legs and corner brackets support the load.
• Ensure all corner brackets and underside cross supports are properly installed and tightened.
• Avoid placing tall, heavy monitor stacks at the far end of a cantilevered return without direct leg support.

These steps keep the combined center of mass within the most stable footprint of the frame, reducing wobble and tipping risk during sit–stand motion.

6. Sit–Stand Ergonomics: More Than Just Load Capacity

A heavy monitor desk must also support healthy posture throughout long days.

Why alternating posture matters

The World Health Organization’s 2020 guidelines recommend that adults reduce sedentary time and break up long periods of static sitting, alongside achieving 150–300 minutes of moderate‑intensity physical activity per week. Standing at a desk does not replace exercise, but height‑adjustable desks are a practical tool for decreasing continuous sitting.

A 2018 Cochrane review on workplace sitting interventions found that sit–stand desks can reduce sitting by around 84–116 minutes per day. However, it also concluded that evidence for long‑term health outcomes remains limited. In other words, a sit–stand desk is best viewed as one component of a broader active lifestyle.

Cornell University’s Workstation Ergonomics Guides suggest a “20‑8‑2” rhythm during computer work: about 20 minutes sitting, 8 minutes standing, and 2 minutes walking or moving. This pattern, while not prescriptive for everyone, offers a realistic starting point for creators working long editing or streaming sessions.

Neutral posture for multi‑monitor setups

According to the OSHA guidance on neutral working postures, ideal seated and standing positions keep:

• Elbows around 90–110° with forearms parallel to the floor
• Wrists straight, not bent up or down
• Hips slightly higher than knees when sitting
• Head balanced over the spine, with minimal neck flexion

For heavy multi‑monitor rigs, this means:

• Primary monitor centered at arm’s length; top line of text at or slightly below eye level (as also emphasized in the CCOHS sit–stand guide)
• Secondary monitors angled inwards, avoiding constant neck rotation beyond roughly 30°
• Desk height adjusted so that both sitting and standing positions meet these criteria without having to shrug shoulders or bend wrists.

A stable, adequately stiff top makes these adjustments feel consistent—your monitors stay where you placed them instead of drifting or shaking when you type.

7. Practical Selection Framework: Matching Desk to Setup

The following framework helps translate all these principles into a concrete choice.

Step 1 – Audit your current and future load

1. List each monitor with its weight (including stand or VESA plate).
2. Add monitor arms, speakers, desktop PCs (if on the top), and any heavy peripherals.
3. Sum the total and add 25–30% safety margin for the desk’s static rating.
4. If planning to upgrade to larger panels (e.g., a 49" ultrawide), factor that in now.

Step 2 – Choose a material + frame combo

Use this decision guide:

• Up to 2x 27–32" on standard arms, moderate peripherals

  • HPL on MDF with robust steel cross‑beams is typically sufficient.
  • Aim for 25 mm+ thickness or a reinforced sandwich top.

• Triple monitor rigs, stacked displays, or heavy ultrawides

  • Prefer steel‑reinforced sandwich tops or sintered stone/glass with steel frames.
  • Ensure the sit–stand base is dual‑motor with a generous weight rating.

• Studio‑style setups with speakers, interfaces, and accessories

  • Solid/laminated wood or composite tops with strong bracing provide both stiffness and a pleasant work surface.
  • Focus on cable management and CPU hangers that allow free vertical travel; rigidly mounted towers can create cable tension that resists height changes.

Step 3 – Plan monitor arm placement

• Mark where your structural beams run under the desk.
• Align heavy arms within 10–15 cm of those beams whenever possible.
• Use grommet mounts only where the underlying structure supports them.
• For very heavy stacks, consider two arms anchored near separate beams rather than one ultra‑long arm off a single point.

Step 4 – Check sit–stand height coverage

• Measure your seated elbow height and standing elbow height.
• Compare this with the desk’s minimum and maximum height.
  Align those with ergonomic ranges such as those in BIFMA G1‑2013 and ISO 9241‑5 to ensure you can maintain neutral posture in both positions.

If your body size is outside the typical 5th–95th percentile range, plan for accessories like a footrest or keyboard tray to fine‑tune posture.

8. Pro Tip and Expert Warnings for Long‑Term Durability

Pro Tip – Fastener checks and seasonal movement

Installers routinely find that retightening critical fasteners after the first month of use, and again at three months, significantly improves long‑term stability. Seasonal humidity changes cause small shifts in wood‑based panels and frames; unchecked, these result in looseness and extra wobble under heavy monitors.

A simple maintenance routine:

• At 4 weeks: Recheck all frame bolts, corner brackets, and leg connections.
• At 3 months: Repeat, plus inspect clamp areas for indentation or delamination.
• Yearly: Recheck and clean, especially before adding heavier equipment.

Expert Warning – Cable management and CPU placement

Cable routing is more than aesthetics. With heavy rigs, installers often see:

• Power and display cables pulled tight at full standing height, subtly resisting the lift.
• Desktop towers or UPS units placed on the top, adding both weight and a rigid cable anchor.

Good practice is to:

• Create slack service loops for all cables, sized for the full travel of the desk.
• Use cable trays or channels that move with the desk surface.
• Keep floor‑standing PCs off the moving platform where possible; if a CPU hanger is used, ensure it moves freely and does not catch cables.

These steps reduce stress on connectors and keep lift motors from working against unintended cable tension.

9. Putting It All Together: Example Configurations

Case Study 1 – Dual 32" monitors on arms, creator home office

• Load: 2x 32" (~8 kg each) + dual monitor arm (~5 kg) + peripherals (~5 kg) → ~26 kg total.
• Desk choice: 25 mm HPL on MDF with deep rear steel beam and dual‑motor sit–stand base rated for at least 35–40 kg on the worksurface.
• Setup notes:
  • Arms clamped directly above rear beam.
  • Primary monitor centered, secondary angled at ~25°.
  • Height range checked to cover both seated and standing elbow heights.

Case Study 2 – 49" ultrawide + 27" vertical, video editor

• Load: 49" ultrawide (~14 kg) + 27" (~5 kg) + heavy dual arm (~7 kg) + speakers (~5 kg) → ~31 kg total.
• Desk choice: Steel‑reinforced composite top or sintered stone/glass with full‑width steel frame, on a high‑capacity dual‑motor base.
• Setup notes:
  • Arm mounted near frame center with reinforcement plate.
  • Top line of the ultrawide slightly below eye level; vertical monitor as secondary only.
  • Cable slack designed for full travel; UPS kept on the floor.

Case Study 3 – L‑shaped streaming + editing station

• Load: Triple 27" on arms over the corner + additional side monitor, cameras, and lights.
• Desk choice: L‑shaped top with robust corner brackets, rear and side cross‑beams, and solid‑wood or reinforced laminate construction.
• Setup notes:
  • Heaviest stack at the corner junction.
  • All corner hardware tightened after 4 weeks.
  • Sit–stand motion tested through full travel with all equipment powered and cables managed.

Key Takeaways

• For heavy monitor setups, desktop material and frame bracing matter more than surface finish names. Look for steel reinforcement and sensible beam layouts, not just thickness.
• Always calculate your total equipment weight and select a desk with 25–30% higher static capacity to protect against long‑term sag and dynamic loads.
• Mount monitor arms near structural beams and use reinforcement where needed; avoid relying on edge clamps over unsupported MDF.
• Ensure the desk’s height range supports neutral posture in both sitting and standing, cross‑checking with ergonomics references like BIFMA G1 and ISO 9241‑5.
• Maintain your workstation: retighten hardware, watch for sag or surface damage near clamps, and keep cables free to move with the desk.

A carefully chosen combination of desktop material, frame design, and sit–stand ergonomics will keep your heavy monitor setup stable, safe, and comfortable for years of intensive creative work.

---

Disclaimer

This article is for informational purposes only and does not constitute medical, safety, or professional ergonomic advice. Individuals with existing musculoskeletal conditions, cardiovascular disease, or other health concerns should consult a qualified healthcare or ergonomics professional before making significant changes to their workstation or activity patterns.

Sources

• CDC / NIOSH – About Ergonomics
• American Wood Council – Design for Code Acceptance 6
• BIFMA G1‑2013 Ergonomics Guideline for Furniture
• ISO 9241‑5:2024 – Workstation Layout and Postural Requirements
• OSHA eTools: Computer Workstations – Desks
• OSHA eTools: Computer Workstations – Neutral Working Postures
• World Health Organization – Guidelines on Physical Activity and Sedentary Behaviour
• CCOHS – Office Ergonomics: Sit/Stand Desk
• Cornell University – Ergonomics Web: Workstation Ergonomics Guides
• UL – New Trends in Office Furniture Industry: Height‑Adjustable Desks
