The Foundational Check: Measuring Your Space & Desk
Before you click "buy" on any under-desk accessory, grab a tape measure. A few minutes of prep work can save you from the frustration of an incompatible purchase. This is the single most critical step, as practitioner reports indicate that up to 80% of retrofit failures stem from overlooking basic clearance and compatibility checks.
Desktop Thickness and Material
The first thing to verify is your desktop itself. Most under-desk accessories, like keyboard trays and CPU hangers, are installed with screws.
- Thickness: The included screws are designed for a standard thickness range, often between 0.75 to 1.5 inches (19mm to 38mm). If your desktop is thinner, you risk the screws poking through the top surface. If it's thicker, the screws may not get enough purchase to hold the accessory securely. Always check the accessory's technical specifications for its required or recommended desktop thickness.
- Material: Solid wood and MDF (medium-density fiberboard) are ideal for mounting. They hold screws securely. However, materials like glass, particleboard with a hollow core, or very soft woods may not provide a stable anchor. Drilling into a glass top is not feasible, and hollow-core desks can quickly fail under the weight of a CPU or the repeated pressure on a keyboard tray.
Pro Tip: A common mistake is using screws that are too long. Always measure your desktop thickness and compare it to the screw length. If the screws are longer, you will need to purchase shorter ones separately to avoid damaging your desk surface.
Underside Clearance: The Sit-Stand Challenge
For owners of adjustable-height desks, this step is non-negotiable. An accessory that fits perfectly when you're sitting might collide with the desk's frame or your legs when the desk is lowered or raised.
You must measure the available clearance at both the lowest and highest height settings of your desk. Pay close attention to the path of movement. Does the desk frame have crossbars or support beams that move into the mounting area at certain heights? Forgetting this is a frequent cause of returns.
Pre-Purchase Clearance Checklist
| Measurement Area | What to Check | Why It Matters |
|---|---|---|
| Mounting Depth | Measure from the front edge of the desk to the nearest obstruction (like a frame). | Ensures your keyboard tray track or CPU holder mount will fit without hitting the frame. |
| Mounting Width | Measure the clear, flat space available between leg frames or other hardware. | Determines the maximum width of the accessory you can install. |
| Travel Path Clearance | Check for any obstructions along the entire vertical travel path of the desk. | Prevents collisions that can damage the accessory, the desk motor, or create a safety hazard. |
Mapping Obstructions
Get under your desk and map out any potential roadblocks. This includes:
- Desk Frame & Legs: The structural supports are the most common obstructions.
- Pre-installed Hardware: Look for grommet holes, built-in power strips, or control boxes for the desk motor.
- Drawer Units: If you have built-in or rolling cabinets, ensure they don't interfere with the new accessory, especially its movement (like a sliding keyboard tray).
The Keyboard Tray Checklist: Achieving Neutral Wrists
A keyboard tray isn't just about creating more desk space; it's a primary ergonomic tool. A poorly chosen one can make your posture worse. According to the U.S. Occupational Safety and Health Administration (OSHA), proper keyboard placement is crucial for preventing musculoskeletal disorders.
Adjustability: Height and Tilt Are Non-Negotiable
The entire purpose of an ergonomic keyboard tray is to position your keyboard and mouse correctly relative to your body. This means adjustability is the most important feature.
- Height Adjustment: The tray should allow you to position the keyboard surface so your forearms are roughly parallel to the floor. For most users, this means the keyboard surface should be 0–3 cm below your seated elbow height. When standing, this adjustability is just as crucial for finding your ideal ergonomic standing desk height.
- Negative Tilt: Look for trays that offer a negative tilt of at least 5°–15°. This allows your wrists to remain in a neutral or slightly flexed position, reducing strain on the carpal tunnel. A common mistake is tilting the keyboard upwards, which forces your wrists into an extended, high-risk posture.
Sizing for Your Keyboard and Mouse
Measure your keyboard and consider your mouse usage. The tray needs to be wide enough to accommodate your keyboard comfortably and deep enough to provide ample space for mouse movement. Avoid narrow trays that force you to place the mouse on the desk above, as this defeats the purpose of an integrated ergonomic setup. A good rule of thumb is to keep your primary mouse zone within a comfortable 15–25 cm horizontal reach from your neutral hand position.

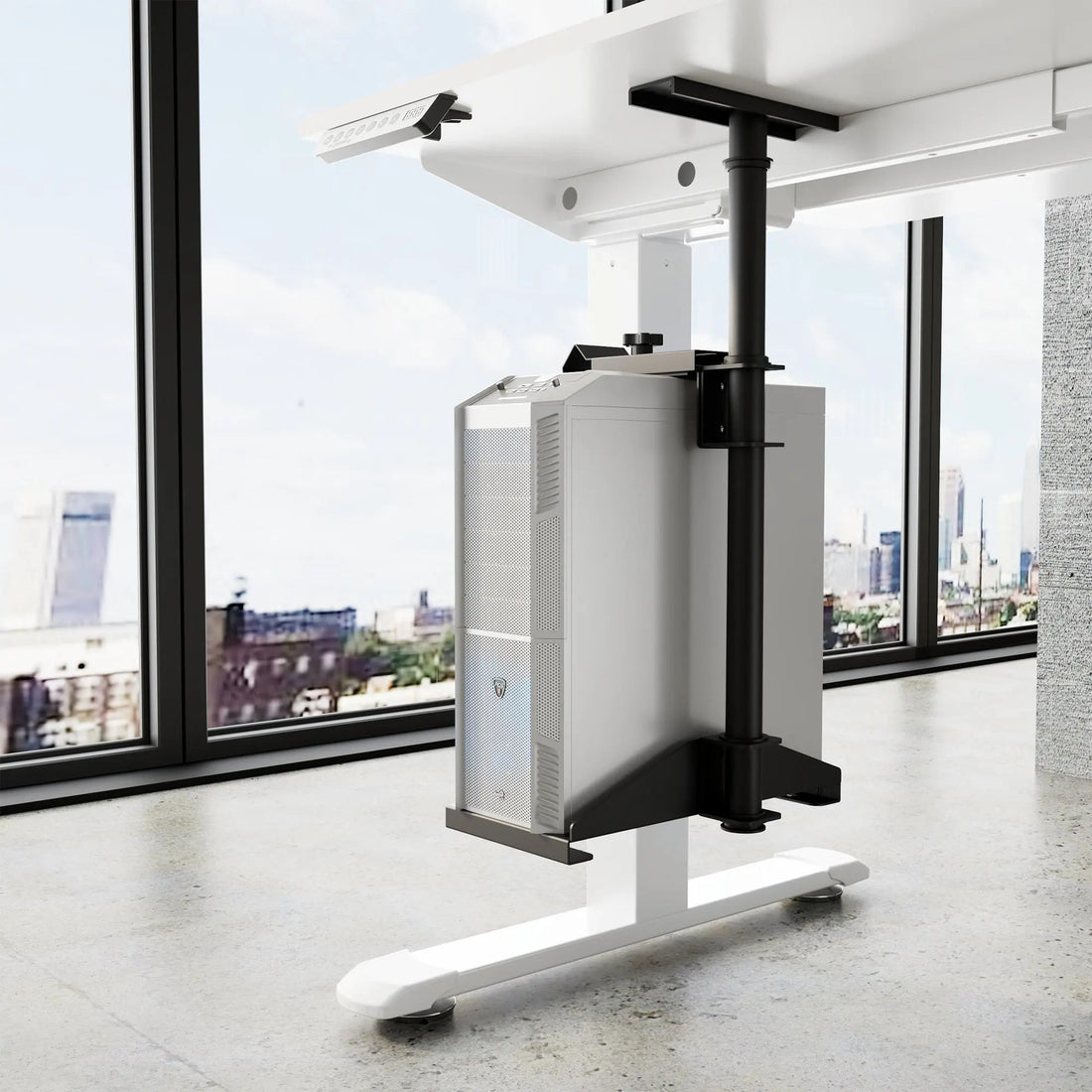

The CPU Holder Checklist: Elevating Your PC
Storing your PC tower on the floor exposes it to dust, pet hair, and accidental kicks. A dedicated CPU holder is a smarter solution, especially with a sit-stand desk. It keeps the tower clean, safe, and moves with the desk, preventing cables from being stretched or unplugged.
Under-Desk Hanger vs. Mobile Cart
You have two main options: an under-desk hanger that mounts directly to the desktop, or a rolling cart that sits on the floor. Each has its trade-offs.
| Feature | Under-Desk Hanger | Mobile Cart |
|---|---|---|
| Space Efficiency | Excellent; frees up floor space entirely. | Good; keeps PC off the floor but still has a footprint. |
| Sit-Stand Desk Sync | Perfect; the CPU moves with the desk, eliminating cable strain. | Poor; cables must have enough slack to accommodate the desk's full height range. |
| Accessibility | Good; many models, like the Knob-operated Adjustable CPU Holder, offer a 360° swivel for easy port access. | Excellent; can be rolled out for easy access to all sides. |
| Installation | Requires drilling and mounting. | No installation required. |
| Best For | Sit-stand desks, minimalist setups, and protecting the PC from floor-level hazards. | Fixed-height desks, users who frequently need to move the entire PC, or heavier towers. |
For users with a sit-stand desk, an under-desk hanger is almost always the superior choice. A product like the Mobile Height Adjustable CPU Cart can be a good alternative for fixed workstations or unique setups.
Verifying Weight, Dimensions, and Airflow
Never guess your PC's measurements or weight.
- Weight Capacity: Check the holder's weight limit against your PC's specification. As a safety margin, especially for a sit-stand desk that introduces movement, a good practice is to ensure your PC's weight is no more than two-thirds of the holder's stated capacity (or use a 1.5x safety margin).
- Dimensions: Most holders are adjustable. Check the height and width adjustment range to ensure it can clamp your tower securely.
- Airflow & Cables: Don't forget to account for airflow and cable connections. A great hands-on tip is to allow at least 50–80 mm of extra space around the PC for proper ventilation and to prevent sharp bends in your cables.
The Footrest & Cable Management Checklist
These final touches complete your ergonomic and organized under-desk setup. They address comfort, safety, and functionality, especially in a dynamic sit-stand environment.
Do You Need a Footrest?
The goal of an ergonomic setup is to achieve a neutral posture, and that starts from the ground up. According to OSHA's guidelines on neutral working postures, your feet should rest flat on the floor with your knees at roughly a 90-degree angle. If your chair is adjusted to the proper height for your desk and your feet don't touch the floor, you need a footrest.
A footrest bridges that gap, providing a stable surface that prevents dangling feet, which can restrict blood circulation in your legs. For many users, a 10–15 cm high adjustable footrest is sufficient. A product like the Footstool with Wheels offers both height adjustment and mobility, allowing for subtle posture changes throughout the day.
The Cable Slack Rule for Sit-Stand Desks
This is a critical safety and functionality check. When a desk moves from sitting to standing height, it can travel 50 cm or more. If your cables are too short, they can be violently unplugged or even pull expensive equipment off your desk.
The Rule: For every connection that moves with the desk (monitor, keyboard, mouse, etc.), leave at least 20–30 cm of extra cable slack. Bundle these cables together into a single, flexible bundle using a sleeve or conduit. This prevents individual cables from snagging and protects them from wear and tear.
Debunking a Myth: "All Cable Organizers Are the Same"
A common misconception is that any zip tie or adhesive clip will suffice for cable management. While these are fine for a static desk, they are inadequate for a sit-stand workstation. The constant movement will quickly defeat weak adhesives and can put stress on bundled cables.
For a dynamic desk, you need a more robust solution:
- Flexible Conduits/Sleeves: These are the best option for grouping all the cables that move with your desk into one neat package.
- Cable Trays/Raceways: Mounted to the underside of the desk, these provide a structured channel to run cables, keeping them tidy and secure.
- Power and Data Separation: A pro tip is to separate your power cables from your data cables (like HDMI or USB) when possible. Running them in parallel bundles can sometimes introduce electromagnetic noise, which might cause screen flickering or data interference in sensitive equipment.
By carefully considering these points, you are well on your way to setting up your standing desk for peak productivity and creating a workspace that is clean, safe, and ergonomically sound.
Wrapping Up: Key Takeaways for a Smarter Workspace
Upgrading your under-desk area is one of the highest-impact investments you can make in your workspace. It enhances ergonomics, reduces clutter, and improves safety. Before you purchase any accessory, run through this final checklist:
- Measure Everything: Confirm your desktop thickness, material, and underside clearance at both the lowest and highest points of your sit-stand desk.
- Prioritize Adjustability: For keyboard trays and footrests, adjustable height and angle are not luxuries—they are essential for proper ergonomic support, as outlined by sources like the BIFMA G1-2013 Ergonomics Guideline.
- Verify Compatibility: Match the weight and dimensions of your equipment (PC tower, keyboard) to the specifications of the accessory, always leaving a safety margin for weight and airflow.
- Plan for Movement: For sit-stand desks, ensure CPU holders move with the desk and that all cables have sufficient slack to avoid damage or disconnection.
By following these practical steps, you can confidently choose accessories that will serve you well for years to come, creating a more comfortable, productive, and organized environment.
Disclaimer: This article is for informational purposes only and does not constitute professional medical advice. If you have pre-existing health conditions, such as chronic back pain or musculoskeletal disorders, please consult with a qualified physician or physical therapist before making significant changes to your workstation.
