L-Shaped Desks for Multi-Monitor Research

Data-Heavy Research: Why L-Shaped Desks Win for Multi-Monitor Use

In higher education and professional research environments, the workday is rarely defined by a single task. A computational biologist might spend the morning visualizing protein structures across triple 4K monitors, the afternoon reviewing physical manuscripts, and the evening in a video conference with international collaborators. For these professionals, the traditional rectangular desk often becomes a bottleneck. The primary frustration is not just a lack of space, but the physiological toll of "desk-shuffling"—the constant, awkward repositioning of hardware and documents that leads to mid-afternoon fatigue and chronic neck strain.

The core issue facing researchers is the management of the "Reach Envelope." In a standard linear setup, expanding a workstation horizontally forces the user to choose between two suboptimal options: placing secondary monitors so far away that they require torso rotation to view, or crowding the primary workspace until the keyboard and mouse are pushed into an ergonomically hazardous position. This physical constraint is a leading contributor to Work-related Musculoskeletal Disorders (WMSDs), which, as noted by the U.S. National Institute for Occupational Safety and Health (NIOSH), are often driven by repetitive tasks and poor static postures.

The Physiology of the Research Workstation

To understand why the geometry of a desk matters, one must examine the pathophysiological mechanisms of static load. When a researcher remains in a fixed position for extended periods—typical during deep data analysis—the muscles of the neck, shoulders, and lower back undergo continuous contraction. This static load restricts blood circulation, leading to a buildup of metabolic waste products and localized inflammation. According to ISO 11226:2000, which evaluates static working postures, the duration and angle of joint positions are critical factors in long-term musculoskeletal health.

For those utilizing triple-monitor arrays, the risk is magnified. The "visual field of view" is limited; once a screen array exceeds a certain width, the user must rotate the cervical spine (the neck) to see the edges. If the desk is a simple rectangle, the monitors are usually placed in a straight line, which increases the viewing distance to the side screens and forces the eyes to constantly refocus. This "visual parallax" and repetitive neck rotation are primary triggers for tension-type headaches and trapezius strain.

The solution lies in creating a "Neutral Position" workstation. As defined by the Occupational Safety and Health Administration (OSHA), a neutral posture keeps joints naturally aligned, reducing stress on muscles, tendons, and the skeletal system. An L-shaped desk facilitates this by allowing the user to sit within the "vertex" or corner of the desk, effectively wrapping the workspace around their natural reach.

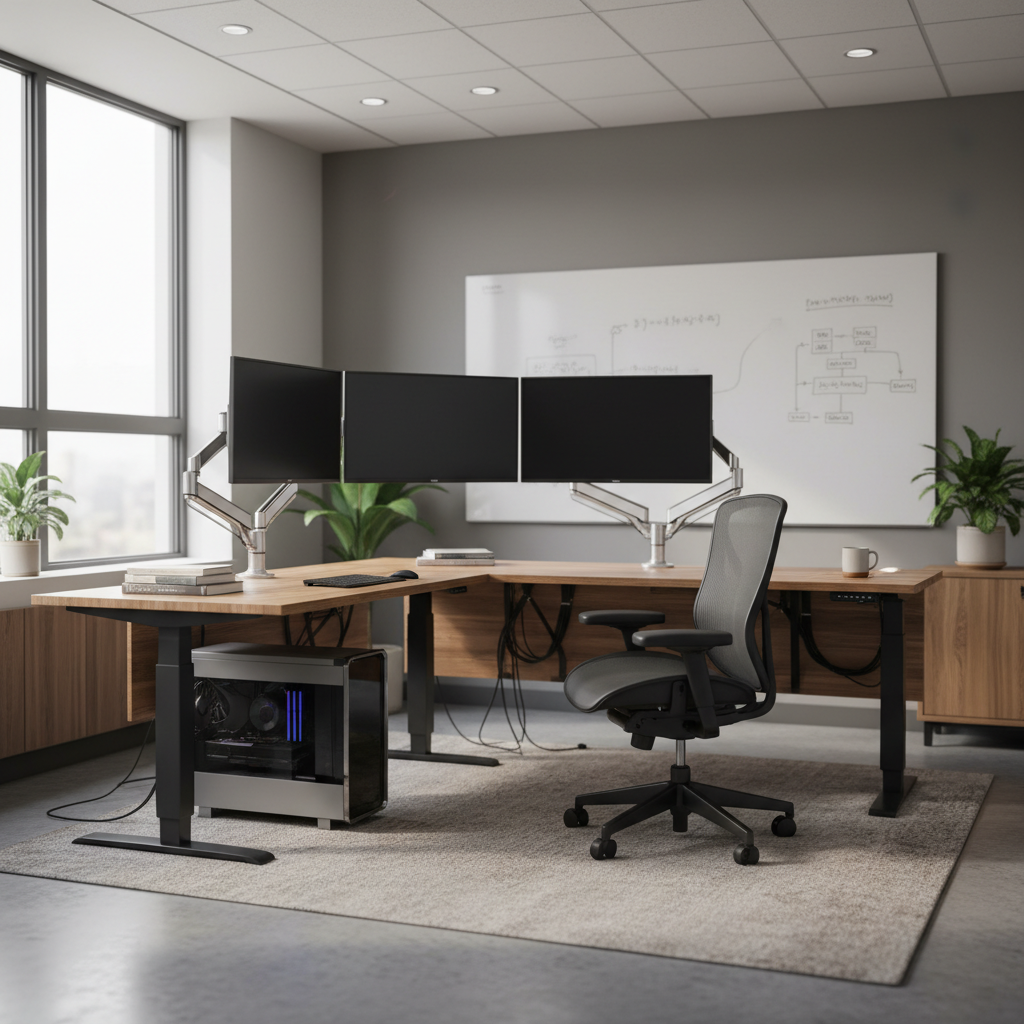

A professional research office featuring an L-shaped standing desk with a triple monitor setup, showcasing ergonomic alignment and ample surface area.

Spatial Optimization: The L-Shape vs. Rectangular Debate

While conventional wisdom suggests that L-shaped desks are simply "bigger," their true value for research lies in spatial zoning. A rectangular desk forces a single-axis workflow. In contrast, the L-shape creates two distinct functional zones.

The Primary Analysis Zone: Located at the corner junction, this area houses the main monitor array. By placing the primary screen directly in front and angling secondary screens at 30-45 degrees, the researcher can view the entire array with minimal head movement.
The Reference/Analog Zone: The secondary leg of the "L" provides a dedicated space for physical documents, reference books, or secondary devices like tablets and laptops. This prevents "document overlap," where papers are precariously balanced on the base of a monitor stand.

The structural stability of the desk is also paramount. Multi-monitor setups are heavy. A triple-monitor array with high-performance arms can exert significant cantilevered force on a desktop. Research into desk stability suggests that placing the heaviest equipment directly over the leg junction of an L-shaped desk significantly reduces "monitor wobble" during typing. This is a critical insight for researchers performing high-precision visualization where even a millimeter of screen shake can cause eye fatigue.

Modeling the Research Environment: A Case Study

To provide a concrete example of how these principles apply in a high-stakes environment, we modeled a common scenario found in academic labs.

Scenario: The Data Visualization Postdoc

User Profile: 165cm female researcher.
Environment: Shared lab space (12x10 ft).
Equipment: Triple 27-inch 4K monitors, full-tower workstation, and extensive reference materials.
Objective: Maximize productivity while maintaining ergonomic health over a 10-hour workday.

Modeling Note (Method & Assumptions): This analysis uses a deterministic parameterized model based on ANSI/HFES 100-2007 and BIFMA G1-2013 standards. It assumes static loads and standard clearance requirements for a shared office.

Parameter	Value	Unit	Rationale
User Stature	165	cm	Typical female researcher height
Ideal Sit Desk Height	~68	cm	Calculated for neutral elbow angle
Equipment Load	~48	kg	Triple monitors + Full-tower PC + Peripherals
Motor Utilization	40	%	Based on 120kg dual-motor capacity
Required Room Depth	102	in	Desk + Chair Zone + Primary Circulation
Min. Cable Length	~9.8	ft	Required for full sit-stand transition

Analysis of the Model: Our modeling revealed an "Ergonomic Gap" of approximately 7cm (2.8 inches) when using standard fixed-height desks (usually 73cm/29in). For a 165cm user, this gap forces the shoulders to shrug upward to reach the keyboard, leading to chronic upper trapezius tension. An adjustable-height solution like the L-Shaped Standing Desk with Accessories Set (60"x23") allows the user to bridge this gap, bringing the work surface down to the precise 68cm required for neutral posture.

Furthermore, the "Circulation Fit" analysis showed that in a 120-inch deep lab, a 60-inch L-shaped desk leaves an 18-inch surplus for passage. While functional, this is a "tight fit" that requires strategic furniture placement. Using a Mobile Height Adjustable CPU Cart to move the heavy workstation tower off the desk surface and under the wing not only frees up 15-20% of the desktop area but also improves the center of gravity, further enhancing the stability of the height-adjustable frame.

Implementation: Stability, Cables, and Motor Load

For researchers, the "engineering" of the desk is as important as the surface area. When selecting an L-shaped desk for data-heavy work, three technical factors are non-negotiable:

1. Motor Capacity and Safety Margins

A dual-motor system is essential for L-shaped desks. Because the surface area is larger and the equipment load is often asymmetrical (with more weight on the primary monitor leg), a single-motor system will struggle, leading to uneven lifting and premature motor failure. Our modeling suggests that for a typical research setup (48kg load), a dual-motor system rated for 120kg operates at only 40% capacity. This high safety margin ensures the desk remains stable and quiet (typically <50dB) during transitions, which is vital in a focused research environment.

2. The Cable Tension Trap

A common "gotcha" in standing desk setups is cable tension. When a desk rises to a standing height (often up to 48 inches for taller users), cables that were perfectly fine at sitting height can become dangerously taut. Based on the National Electrical Code (NFPA 70) principles for flexible cords, we recommend a minimum of 20% "slack buffer." For a PC mounted under the desk, a 10-foot cable is the standard requirement to ensure that lifting the desk doesn't result in a disconnected GPU or a damaged port.

3. Surface Durability and Organization

Research involves "high-friction" activities—moving heavy monitor stands, sliding reference books, and the occasional coffee spill. A scratch-resistant surface is a functional requirement, not an aesthetic one. For those who prefer a more modern, data-center aesthetic, the GTG - L60, L-Shaped Glass LED Gaming Desk (60"x40") offers a tempered glass surface that is inherently water-resistant and easy to sanitize. To keep the workspace clear, integrating a 23" Rolling File Cabinet with Drawer provides a home for physical archives that would otherwise clutter the desk wings.

Practical Recommendations for the Research Workday

Transitioning to an L-shaped ergonomic workstation is only the first step. To maximize the health benefits, researchers should adopt evidence-based work rhythms and setup protocols.

The Ideal Sit-Stand Rhythm: The Cornell University Ergonomics Web recommends the "20-8-2" rule:

20 Minutes Sitting: In a neutral posture.
8 Minutes Standing: To encourage blood flow and metabolic activity.
2 Minutes Moving: A micro-break involving stretching or walking.

Monitor Placement Checklist: To prevent the neck strain often associated with multi-monitor research, follow these heuristics:

Primary Screen: Centered directly in front of your nose. The top third of the screen should be at eye level (to account for the natural 15-degree downward tilt of the human gaze).
Secondary Screens: Angled inward at 30-45 degrees to create a "cockpit" effect. This keeps all pixels within the "High-Utility Visual Zone" without requiring torso rotation.
Distance: Maintain an arm's length (approximately 20-30 inches) between your eyes and the screens. If you find yourself leaning forward to read data, increase the font scaling rather than moving the monitor closer.

The "Clean Wing" Rule: Reserve the secondary leg of your L-shaped desk for "non-digital" tasks. By keeping this area clear of electronics, you create a psychological "buffer zone" that allows for focused reading and writing, reducing the cognitive load of being surrounded by screens.

Conclusion: Engineering Productivity

As detailed in The 2026 Workstation White Paper: Converging Ergonomic Science and Sustainable Engineering, the modern professional workstation is no longer just a piece of furniture; it is a tool for physiological preservation and cognitive optimization. For the researcher handling massive datasets and multi-monitor arrays, the L-shaped desk provides the structural and spatial framework necessary to sustain high-level output.

By aligning your workspace with the principles of BIFMA G1-2013 and ISO 9241-5, you are not merely "buying a desk"—you are implementing an engineering control that mitigates the risks of sedentary work. Whether you are a postdoc in a shared lab or a senior faculty member in a private office, the investment in a stable, adjustable, and spatially optimized L-shaped workstation is an investment in the longevity of your career.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional medical advice. Ergonomic requirements can vary significantly based on individual health conditions and physical stature. If you are experiencing chronic pain or have a pre-existing musculoskeletal condition, please consult a qualified occupational therapist or healthcare professional before making significant changes to your workstation.
