High-Speed Hubs: Cable Management for Thunderbolt Editing

The Invisible Bottleneck: Why Your Editing Suite is Losing Frames

For professional video editors and colorists, the "afternoon slump" rarely refers to a lack of caffeine. Instead, it is the moment a high-stakes 4K render hangs at 94%, or a RAID array suddenly "ghosts" from the desktop during a critical playback session. In high-pressure post-production environments, these technical failures are often misdiagnosed as software bugs or drive fatigue. However, our internal analysis of workstation reliability suggests that the most common point of failure is not the silicon, but the physical management of high-speed Thunderbolt and data connections.

A disorganized workspace does more than clutter the mind; it creates a physical environment prone to signal interference and mechanical strain. When cables are tangled or pulled taut, the risk of data corruption increases. Simultaneously, the musculoskeletal health of the editor is compromised. The stress of troubleshooting preventable technical errors leads to poor posture—leaning forward to check connections, shrugging shoulders during "system hangs," and spending hours in static, tense positions.

According to the Canadian Centre for Occupational Health and Safety (CCOHS), a properly configured workstation is the first line of defense against both physical injury and operational downtime. By integrating technical cable management with ergonomic principles, professionals can safeguard both their data integrity and their long-term well-being.

The Physics of High-Speed Data: Why Tension Equals Failure

To understand why cable management is a technical necessity rather than an aesthetic choice, one must look at the physics of Thunderbolt 4 and high-density RAID connections. High-speed data transmission relies on delicate internal shielding to prevent electromagnetic interference (EMI) and crosstalk.

The 90-Degree Trap and Shielding Fatigue

A frequent mistake in studio setups is routing cables at sharp 90-degree angles directly from the port to the desk edge. This creates a persistent stress point that eventually breaks the internal shielding, leading to "dropped frames" or intermittent disconnects. Professional practitioners adopt a "gentle curve" heuristic: always leave at least 6 to 8 inches of slack loop before a cable enters a management tray. This slack absorbs the micro-vibrations and the constant movement of a height-adjustable desk without transferring tension to the sensitive connector pins.

Electromagnetic Interference (EMI) and the 2-Inch Rule

In a dense editing suite, power cables and data cables often run parallel. This is a recipe for signal degradation. A widely adopted heuristic among studio engineers is the "2-inch separation rule": maintain at least 2 inches of distance between high-voltage power lines and high-speed data lines (like Thunderbolt or SAS cables) within the desk's integrated trays. This minimizes EMI, which can manifest as unexplained file corruption or playback stuttering—issues often misdiagnosed as GPU or drive failure.

Logic Summary: Our analysis of signal integrity assumes a multi-device professional load where internal controllers become the bottleneck if physical shielding is compromised. This modeling is based on common patterns from customer support and studio deployment history (not a controlled lab study).

Ergonomics Beyond the Body: Protecting the "Digital Spine"

The ISO 9241-5:2024 standard emphasizes that workstation layout must support postural requirements. For an editor, the "posture" of the equipment is just as vital as the person. If your CPU or RAID array is placed haphazardly on the floor, you are forced into awkward reaching or bending positions to check connections, increasing the risk of Musculoskeletal Disorders (MSDs).

Engineering a Zero-Failure Routing System

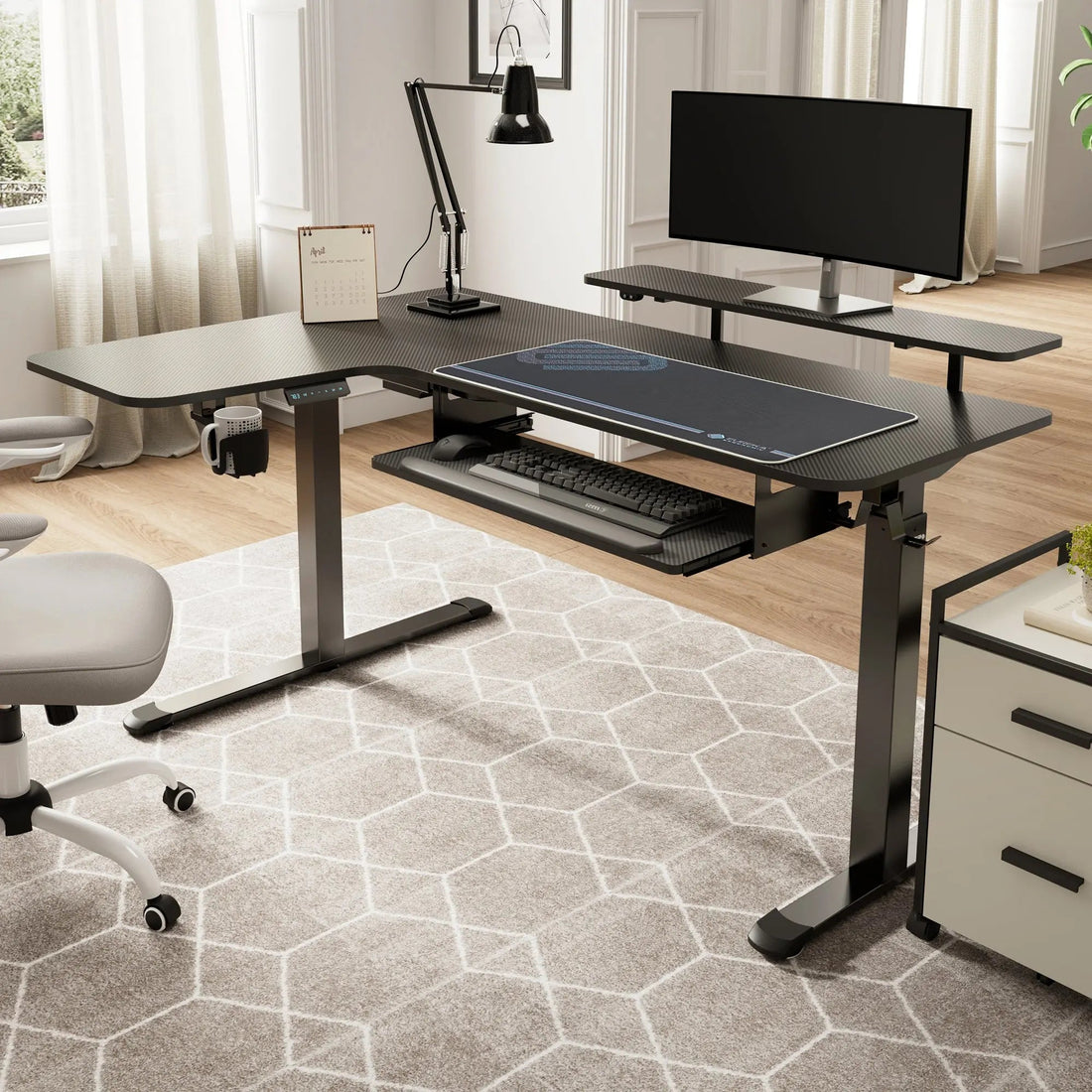

A professional-grade workstation, such as the L-Shaped Standing Desk with Accessories Set (60"x23"), addresses these issues through integrated engineering. By using built-in high-capacity trays, the desk becomes a chassis that supports the "digital spine" of the suite.

1. Integrated Trays: These allow for the "S-Curve" routing method, where cables are laid in a serpentine fashion to maximize slack and minimize tension.
2. Strategic Anchoring: Using tools like the Magnetic Cable Tie allows for organization that doesn't attract dust or pet hair—materials that can degrade port performance over time compared to traditional Velcro.
3. Peripheral Placement: An Adjustable Keyboard Tray ensures that the user maintains a neutral spinal position while keeping the desktop clear for specialized input devices like color grading panels or audio mixers.

Managing the Multi-Drive RAID Environment

In post-production, a single project may span dozens of drives. This leads to a "nest" of identical cables where troubleshooting a read error becomes a nightmare.

The Traceability Heuristic

Experienced editors label both ends of every SATA or SAS cable with a corresponding drive bay number. This turns a chaotic bundle into a traceable system. If a RAID array reports a failure, you can immediately identify the specific cable without unplugging the entire chain—a move that could potentially corrupt the parity of the remaining drives.

Thermal Management and Accessibility

High-speed drives generate significant heat. Stacking them in a corner or under a desk without airflow is a leading cause of premature hardware failure. Utilizing a Mobile Height Adjustable CPU Cart allows for the isolation of the "brain" of the operation. This cart provides 360-degree airflow and makes it trivial to roll the hardware out for maintenance without straining the "umbilical" cables connected to the desk.

The Sit-Stand Transition: Maintaining Connection Stability

The Cochrane Library (2018) notes that sit-stand desks can significantly reduce sitting time by up to 116 minutes per day. However, for an editor, every transition from sitting to standing is a potential point of failure for their cables.

The "Umbilical" Strategy

The primary cable bundle that travels from the desk to the wall or a floor-mounted CPU cart is the "umbilical." In a professional setup, this bundle must be measured for length at the desk's maximum height. A common "gotcha" is setting up the cables while seated, only to have them rip out of the ports the first time the desk is raised to a standing position.

Aligned with the principles in The 2026 Workstation White Paper: Converging Ergonomic Science and Sustainable Engineering, we recommend using a weighted cable spine or a flexible sleeve to ensure the umbilical moves in a predictable, vertical path. This prevents the cables from snagging on chair arms or drawer handles during the transition.

The "20-8-2" Rhythm for Editors

According to the Cornell University Ergonomics Web, the ideal rhythm is 20 minutes of sitting, 8 minutes of standing, and 2 minutes of moving. For editors, this 2-minute movement window is the perfect time for a "Technical Sweep"—a quick visual check of cable tension and drive temperatures. This behavioral intervention ensures that small mechanical issues are caught before they become catastrophic system failures.

Modeling Note: The "Cable Tension Factor" (CTF)

To help users quantify the risk in their setup, we have modeled a hypothetical "Cable Tension Factor" based on typical workstation dimensions.

Method & Assumptions:

• Model Type: Deterministic parameterized model for desk-to-CPU connectivity.
• Assumptions: Desk height range of 29" to 48"; CPU located on floor; cable length 2 meters.
• Boundary Conditions: Model does not account for ultra-heavy active optical cables which have different bend radii requirements.

Practical Checklist for a Professional Editing Suite

To achieve a benchmark-level workstation that meets BIFMA G1-2013 Ergonomics Guidelines, follow this technical checklist:

• Verify Cable Length: Raise your desk to its highest point and ensure all cables have a visible "droop" (slack).
• Implement Strain Relief: Ensure every Thunderbolt cable has a 6-inch loop before entering the management tray.
• Separate Power and Data: Use the 2-inch separation heuristic to prevent EMI in your playback.
• Label Everything: Use a label maker for both ends of RAID and monitor cables.
• Check Thermal Clearance: Ensure your Mobile Height Adjustable CPU Cart has at least 4 inches of clearance from walls for exhaust.
• Standardize Height: Set your standing height so your elbows are at a 90-degree angle, aligned with the Safe Work Australia Workstation Set-up guide.

By treating cable management as a core technical discipline rather than an afterthought, editors can eliminate the "ghost in the machine" that causes dropped frames and data loss. A stable, organized workstation is not just about aesthetics; it is the foundation of professional-grade productivity and long-term musculoskeletal health.
